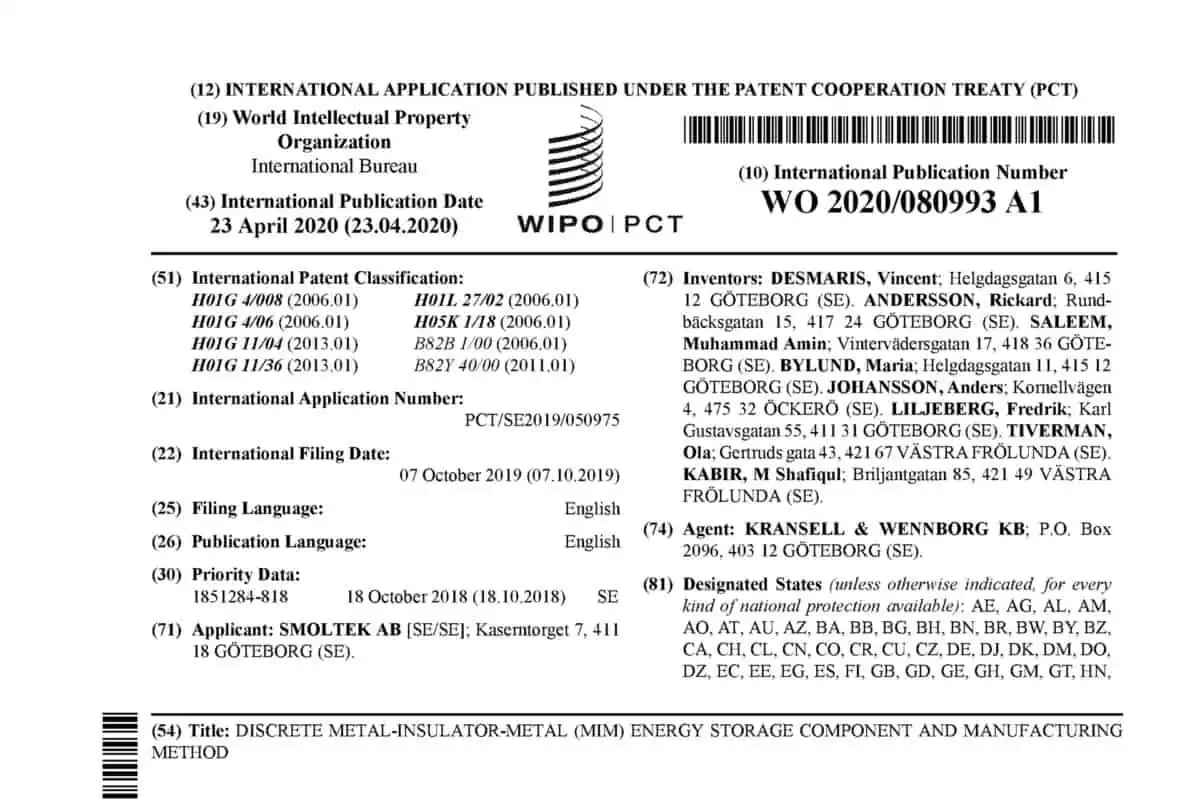

Wo2020080993a1 Web Patents 01

Discrete CNF-MIM

The Discrete CNF-MIM patent family is covering a method for manufacturing of discrete capacitor components based on our CNF-MIM technology. The innovation exploits the extra-ordinary surface to volume ratio provided by carbon nanofibers to create a MIM capacitor with unparalleled high capacitance density.

The inven­tion: A dis­crete two-ter­min­al met­al-insu­lat­or-met­al (MIM) capa­cit­or com­pon­ent, the capa­cit­or com­pon­ent com­pris­ing: a MIM-arrange­ment com­pris­ing: a first elec­trode lay­er; a plur­al­ity of con­duct­ive nano­struc­tures grown from the first elec­trode lay­er; a sol­id dielec­tric mater­i­al lay­er con­form­ally coat­ing each nano­struc­ture in the plur­al­ity of con­duct­ive nano­struc­tures and the first elec­trode lay­er uncovered by the con­duct­ive nano­struc­tures; and a second elec­trode lay­er cov­er­ing the sol­id dielec­tric mater­i­al lay­er a first con­nect­ing struc­ture for extern­al elec­tric­al con­nec­tion of the capa­cit­or com­pon­ent a second con­nect­ing struc­ture for extern­al elec­tric­al con­nec­tion of the capa­cit­or com­pon­ent; and an elec­tric­ally insu­lat­ing encap­su­la­tion mater­i­al at least partly embed­ding the MIM-arrangement.

Granted patents relating to the innovation

Pat­ent OfficePat­ent
ChinaCN112823403B
TaiwanI832909
JapanJP7430718
USAUS12033797
For more inform­a­tion about a par­tic­u­lar pat­ent, click on its name to view it on Google Patents.
